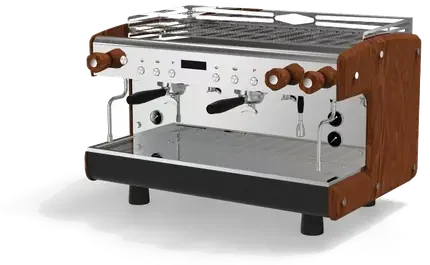

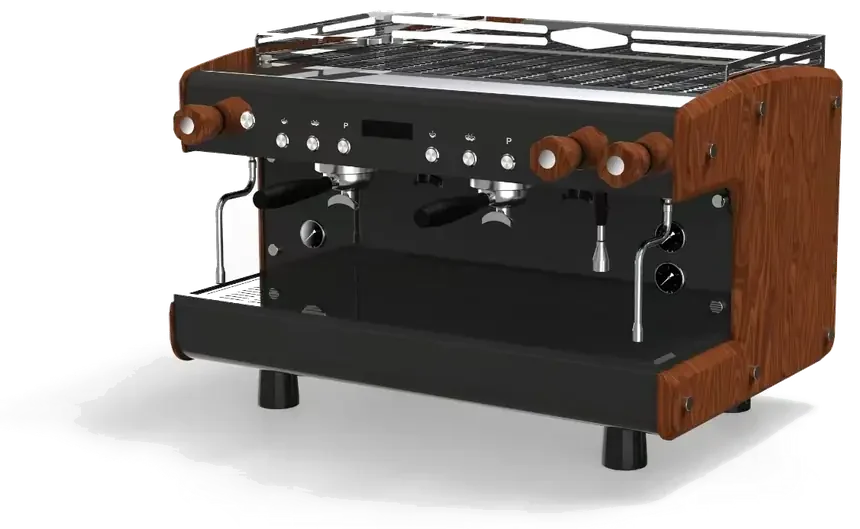

Corvino Quadra
The 228 platform in a squarer, more graphic cabinet — offered in black or steel with warm wood cheeks.
Mechanically identical to the Corvino Classico: three boilers, Italian FOT rotary pump, GICAR flowmeter, copper brew heads and independent group heating. The difference is the body — a flat-fronted, low-shouldered cabinet that suits a modern counter.
- Triple boilers — 10 L steam plus two 1 L brew boilers.
- Italian FOT rotary pump — With GICAR volumetric flowmeter.
- Independent group heating — Active heating at each brew head.
- Two finishes — Black or stainless body, wood side panels.
| Control system | T3 |
| Boilers | 3 separate — 10 L steam + 2 × 1 L brew |
| Group heating | Independent active heating per group |
| Brew group | 100% pure copper |
| Pipework | 100% pure copper |
| Pump | Italian FOT rotary |
| Flowmeter | GICAR |
| Brew temperature | 88–95 °C, independent per boiler |
| Pre-infusion | 1–9 s, adjustable |
| Adjustable | Brew volume · brew water flow rate |
| Dimensions | 755 × 580 × 540 mm |
| Weight | 60 kg net / 75 kg gross |
| Included | Single & double portafilters, milk pitcher, tamper |
كورفينو كوادرا — منصة 228 بهيكل أكثر تربيعاً وحدّة — متوفرة بالأسود أو الستانلس مع جوانب خشبية دافئة.
Price excludes VAT. Delivered across the GCC with installation and barista training.
How it compares
Two machines a Gulf buyer would cross-shop against this one, on each maker's published figures and the price each is actually selling for in the Gulf today.
 |
 |
 | |
|---|---|---|---|
| Boiler layout | 10 L steam + 2 × 1 L brew | 11 L steam + 2 × 0.15 L brew | 8 L steam + per-group brew boiler |
| Brew boiler per group | Yes | Yes | Yes |
| Independently heated group head | Yes | Yes | Yes |
| Footprint (W × D × H) | 755 × 580 × 540 mm | 840 × 600 × 463 mm | 877 × 680 × 534 mm |
| Weight | 60 kg | 95 kg | 97 kg |
| Gulf retail | 27,800 SAR | 55,200 SAR | 63,250 SAR |
Competitor figures: makers' published specifications. Prices: current Gulf retail where a Gulf retailer lists the machine, otherwise international retail at the fixed currency peg. Checked August 2026.
